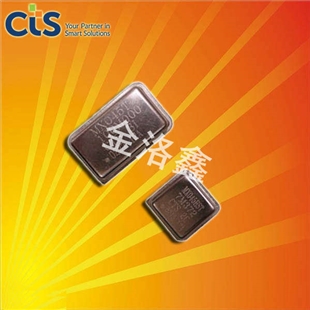

- 規格型號：44330714
- 頻率：32MHz
- 尺寸：20.8×13.2mm
- 產品描述：美國CTS晶振,型號MXO45,編碼MXO45-3C-32M0000,是傳統的通孔時鐘振蕩器,進口晶體振蕩器,提供低成本的設計,支持舊的HCMOS/TTL應用程序,頻率32MHz,電壓5V,工作溫度-20~70°C,具有低相位抖動性能,適用于計算機及外圍設備,...

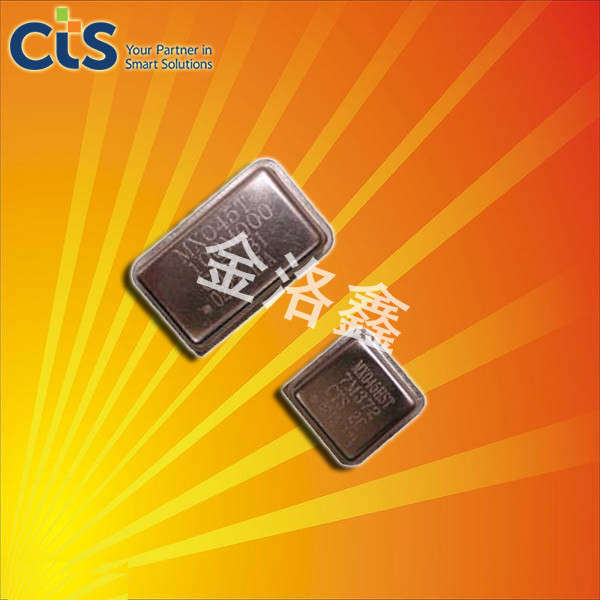

MXO45-3C-32M0000,美國CTS晶振,6G模塊晶振
品說明.jpg)
MXO45-3C-32M0000,美國CTS晶振,6G模塊晶振,美國CTS石英晶振,型號MXO45,編碼MXO45-3C-32M0000,是傳統的通孔時鐘振蕩器,進口晶體振蕩器,提供低成本的設計,支持舊的HCMOS/TTL應用程序,頻率32MHz,電壓5V,工作溫度-20~70°C,具有低相位抖動性能,適用于計算機及外圍設備,存儲區域組網,6G寬帶接入,微控制器/ FPGAs,組網設備,以太網/千兆以太網,光纖通道,測試與測量設備等領域.
MXO45-3C-32M0000,美國CTS晶振,6G模塊晶振特點：
·標準14針DIP封裝
·基本和第三泛音水晶設計
·低相位抖動性能
·頻率范圍1 - 200MHz
·+5.0V操作
·可選輸出啟用選項
·三種經批準的包裝方法
品規格參數圖.jpg)
MXO45-3C-32M0000,美國CTS晶振,6G模塊晶振,參數圖
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 32MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | Vcc | 5V | |
| 儲存溫度 | T_stg | -40℃~+100℃ | 開封裸存 |
| 工作溫度 | T_use | -20℃~ +70℃ | |
| 頻率穩定度 | f_tol | ±50 ppm | -20℃~ +70℃ |
| 功耗 | Icc | 40mA Max |
20.001MHz to 40MHz [CL = 30pF]
|
| 輸出占空比 | SYM |
45MIN 55MAX |
@ 50% Level
|
| 輸出電壓 | VOH | Vcc-0.9V Min | CMOS Load |
| VOL | Vcc-0.1V Max | CMOS Load | |
| 輸出方式 | HCMOS | ||
| 輸出電流電平 | IOH | 80 % VCC Min. | -16mA |
| IOL | 20 % VCC Max. | 16mA | |
| 上升/下降時間 | tr/ tf | 8 ns max | 20.001MHz to 80MHz [CL = 30pF] |
| 振蕩啟動時間 | t_str | 10ms max | Application of VCC, CL = 15pF |
| 頻率老化 | f_aging | ±5ppm max | +25 °C, 第一年,nominal VCC |
品尺寸圖.jpg)
MXO45-3C-32M0000,美國CTS晶振,6G模塊晶振 尺寸圖
| 原廠代碼 | 晶振品牌 | 型號 | 頻率 | 電壓 | 頻率穩定度 | 工作溫度 |
| MXO45-3C-4M0000 | CTS晶振 | MXO45 | 4MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-1M0000 | CTS晶振 | MXO45 | 1MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-1M8432 | CTS晶振 | MXO45 | 1.8432MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-24M0000 | CTS晶振 | MXO45 | 24MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-16M0000 | CTS晶振 | MXO45 | 16MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-10M0000 | CTS晶振 | MXO45 | 10MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-2M0000 | CTS晶振 | MXO45 | 2MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-8M0000 | CTS晶振 | MXO45 | 8MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-40M0000 | CTS晶振 | MXO45 | 40MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-4M9152 | CTS晶振 | MXO45 | 4.9152MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-32M0000 | CTS晶振 | MXO45 | 32MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-5M0000 | CTS晶振 | MXO45 | 5MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-18M4320 | CTS晶振 | MXO45 | 18.432MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-6M0000 | CTS晶振 | MXO45 | 6MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-6M1440 | CTS晶振 | MXO45 | 6.144MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-12M0000 | CTS晶振 | MXO45 | 12MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-20M0000 | CTS晶振 | MXO45 | 20MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-7M3728 | CTS晶振 | MXO45 | 7.3728MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-2C-1M0000 | CTS晶振 | MXO45 | 1MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-1M8432 | CTS晶振 | MXO45 | 1.8432MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-2M0000 | CTS晶振 | MXO45 | 2MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-2M4576 | CTS晶振 | MXO45 | 2.4576MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-3M6864 | CTS晶振 | MXO45 | 3.6864MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-4M0000 | CTS晶振 | MXO45 | 4MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-4M9152 | CTS晶振 | MXO45 | 4.9152MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-5M0000 | CTS晶振 | MXO45 | 5MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-5M0688 | CTS晶振 | MXO45 | 5.0688MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-6M0000 | CTS晶振 | MXO45 | 6MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-6M1440 | CTS晶振 | MXO45 | 6.144MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-7M3728 | CTS晶振 | MXO45 | 7.3728MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-8M0000 | CTS晶振 | MXO45 | 8MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-10M0000 | CTS晶振 | MXO45 | 10MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-12M0000 | CTS晶振 | MXO45 | 12MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-14M31818 | CTS晶振 | MXO45 | 14.31818MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-16M0000 | CTS晶振 | MXO45 | 16MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-18M4320 | CTS晶振 | MXO45 | 18.432MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-19M6608 | CTS晶振 | MXO45 | 19.6608MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-20M0000 | CTS晶振 | MXO45 | 20MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-24M0000 | CTS晶振 | MXO45 | 24MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-25M0000 | CTS晶振 | MXO45 | 25MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-25M1750 | CTS晶振 | MXO45 | 25.175MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-28M3220 | CTS晶振 | MXO45 | 28.322MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-32M0000 | CTS晶振 | MXO45 | 32MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-40M0000 | CTS晶振 | MXO45 | 40MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-50M0000 | CTS晶振 | MXO45 | 50MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-1M0000 | CTS晶振 | MXO45 | 1MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-1M8432 | CTS晶振 | MXO45 | 1.8432MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-2M0000 | CTS晶振 | MXO45 | 2MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-2M4576 | CTS晶振 | MXO45 | 2.4576MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-3M6864 | CTS晶振 | MXO45 | 3.6864MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-4M0000 | CTS晶振 | MXO45 | 4MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-4M9152 | CTS晶振 | MXO45 | 4.9152MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-5M0000 | CTS晶振 | MXO45 | 5MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-5M0688 | CTS晶振 | MXO45 | 5.0688MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-6M0000 | CTS晶振 | MXO45 | 6MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-6M1440 | CTS晶振 | MXO45 | 6.144MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-7M3728 | CTS晶振 | MXO45 | 7.3728MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-8M0000 | CTS晶振 | MXO45 | 8MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-10M0000 | CTS晶振 | MXO45 | 10MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-12M0000 | CTS晶振 | MXO45 | 12MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-14M31818 | CTS晶振 | MXO45 | 14.31818MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-16M0000 | CTS晶振 | MXO45 | 16MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-18M4320 | CTS晶振 | MXO45 | 18.432MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-19M6608 | CTS晶振 | MXO45 | 19.6608MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-20M0000 | CTS晶振 | MXO45 | 20MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-24M0000 | CTS晶振 | MXO45 | 24MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-25M0000 | CTS晶振 | MXO45 | 25MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-25M1750 | CTS晶振 | MXO45 | 25.175MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-28M3220 | CTS晶振 | MXO45 | 28.322MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-32M0000 | CTS晶振 | MXO45 | 32MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-40M0000 | CTS晶振 | MXO45 | 40MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-50M0000 | CTS晶振 | MXO45 | 50MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-3C-20M0000 | CTS晶振 | MXO45 | 20MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-5M0000 | CTS晶振 | MXO45 | 5MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-6M0000 | CTS晶振 | MXO45 | 6MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-1M0000 | CTS晶振 | MXO45 | 1MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-1M8432 | CTS晶振 | MXO45 | 1.8432MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-10M0000 | CTS晶振 | MXO45 | 10MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-12M0000 | CTS晶振 | MXO45 | 12MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-14M31818 | CTS晶振 | MXO45 | 14.31818MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-14M31818 | CTS晶振 | MXO45 | 14.31818MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-16M0000 | CTS晶振 | MXO45 | 16MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-18M4320 | CTS晶振 | MXO45 | 18.432MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-19M6608 | CTS晶振 | MXO45 | 19.6608MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-19M6608 | CTS晶振 | MXO45 | 19.6608MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-2M0000 | CTS晶振 | MXO45 | 2MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-2M4576 | CTS晶振 | MXO45 | 2.4576MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-2M4576 | CTS晶振 | MXO45 | 2.4576MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-24M0000 | CTS晶振 | MXO45 | 24MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-25M0000 | CTS晶振 | MXO45 | 25MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-25M1750 | CTS晶振 | MXO45 | 25.175MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-25M1750 | CTS晶振 | MXO45 | 25.175MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-28M3220 | CTS晶振 | MXO45 | 28.322MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-3M6864 | CTS晶振 | MXO45 | 3.6864MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-32M0000 | CTS晶振 | MXO45 | 32MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-4M0000 | CTS晶振 | MXO45 | 4MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-4M9152 | CTS晶振 | MXO45 | 4.9152MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-40M0000 | CTS晶振 | MXO45 | 40MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-5M0688 | CTS晶振 | MXO45 | 5.0688MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-5M0688 | CTS晶振 | MXO45 | 5.0688MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-50M0000 | CTS晶振 | MXO45 | 50MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-6M1440 | CTS晶振 | MXO45 | 6.144MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-7M3728 | CTS晶振 | MXO45 | 7.3728MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-8M0000 | CTS晶振 | MXO45 | 8MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-25M0000 | CTS晶振 | MXO45 | 25MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-28M3220 | CTS晶振 | MXO45 | 28.322MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-3M6864 | CTS晶振 | MXO45 | 3.6864MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-50M0000 | CTS晶振 | MXO45 | 50MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-2C-11M0592 | CTS晶振 | MXO45 | 11.0592MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-12M5000 | CTS晶振 | MXO45 | 12.5MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-15M0000 | CTS晶振 | MXO45 | 15MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-15M3842 | CTS晶振 | MXO45 | 15.3842MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-15M8420 | CTS晶振 | MXO45 | 15.842MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-1M2288 | CTS晶振 | MXO45 | 1.2288MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-1M5440 | CTS晶振 | MXO45 | 1.544MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-20M4800 | CTS晶振 | MXO45 | 20.48MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-23M9620 | CTS晶振 | MXO45 | 23.962MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-27M0000 | CTS晶振 | MXO45 | 27MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-2M0480 | CTS晶振 | MXO45 | 2.048MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-30M0000 | CTS晶振 | MXO45 | 30MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-33M0000 | CTS晶振 | MXO45 | 33MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-39M9360 | CTS晶振 | MXO45 | 39.936MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-41M0000 | CTS晶振 | MXO45 | 41MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-4M0960 | CTS晶振 | MXO45 | 4.096MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-4M1943 | CTS晶振 | MXO45 | 4.1943MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-60M0000 | CTS晶振 | MXO45 | 60MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-6M1760 | CTS晶振 | MXO45 | 6.176MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2I-10M0000 | CTS晶振 | MXO45 | 10MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-11M0590 | CTS晶振 | MXO45 | 11.059MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-11M0592 | CTS晶振 | MXO45 | 11.0592MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-12M0000 | CTS晶振 | MXO45 | 12MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-15M0000 | CTS晶振 | MXO45 | 15MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-15M9000 | CTS晶振 | MXO45 | 15.9MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-16M0000 | CTS晶振 | MXO45 | 16MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-16M3840 | CTS晶振 | MXO45 | 16.384MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-19M6608 | CTS晶振 | MXO45 | 19.6608MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-1M2288 | CTS晶振 | MXO45 | 1.2288MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-1M8432 | CTS晶振 | MXO45 | 1.8432MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-20M0000 | CTS晶振 | MXO45 | 20MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-23M2000 | CTS晶振 | MXO45 | 23.2MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-25M0000 | CTS晶振 | MXO45 | 25MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-2M0000 | CTS晶振 | MXO45 | 2MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-2M4576 | CTS晶振 | MXO45 | 2.4576MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-30M0000 | CTS晶振 | MXO45 | 30MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-32M0000 | CTS晶振 | MXO45 | 32MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-33M3333 | CTS晶振 | MXO45 | 33.3333MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-3M6864 | CTS晶振 | MXO45 | 3.6864MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-4M0000 | CTS晶振 | MXO45 | 4MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-4M1943 | CTS晶振 | MXO45 | 4.1943MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-7M3728 | CTS晶振 | MXO45 | 7.3728MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-2I-8M0000 | CTS晶振 | MXO45 | 8MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-3C-11M0592 | CTS晶振 | MXO45 | 11.0592MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-12M3520 | CTS晶振 | MXO45 | 12.352MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-12M3540 | CTS晶振 | MXO45 | 12.354MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-13M0000 | CTS晶振 | MXO45 | 13MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-14M7456 | CTS晶振 | MXO45 | 14.7456MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-1M2288 | CTS晶振 | MXO45 | 1.2288MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-1M8400 | CTS晶振 | MXO45 | 1.84MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-22M1184 | CTS晶振 | MXO45 | 22.1184MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-30M0000 | CTS晶振 | MXO45 | 30MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-33M0000 | CTS晶振 | MXO45 | 33MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-37M0560 | CTS晶振 | MXO45 | 37.056MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-54M0000 | CTS晶振 | MXO45 | 54MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3I-10M4920 | CTS晶振 | MXO45 | 10.492MHz | 5V | ±50ppm | -40°C ~ 85°C |
| MXO45-3I-11M0592 | CTS晶振 | MXO45 | 11.0592MHz | 5V | ±50ppm | -40°C ~ 85°C |
| MXO45-3I-18M0000 | CTS晶振 | MXO45 | 18MHz | 5V | ±50ppm | -40°C ~ 85°C |
| MXO45-3I-1M0000 | CTS晶振 | MXO45 | 1MHz | 5V | ±50ppm | -40°C ~ 85°C |
| MXO45-3I-1M8432 | CTS晶振 | MXO45 | 1.8432MHz | 5V | ±50ppm | -40°C ~ 85°C |
| MXO45-3I-20M0000 | CTS晶振 | MXO45 | 20MHz | 5V | ±50ppm | -40°C ~ 85°C |
| MXO45-3I-25M0000 | CTS晶振 | MXO45 | 25MHz | 5V | ±50ppm | -40°C ~ 85°C |
| MXO45-3I-32M0000 | CTS晶振 | MXO45 | 32MHz | 5V | ±50ppm | -40°C ~ 85°C |
| MXO45-3I-33M3330 | CTS晶振 | MXO45 | 33.333MHz | 5V | ±50ppm | -40°C ~ 85°C |
| MXO45-3I-36M8640 | CTS晶振 | MXO45 | 36.864MHz | 5V | ±50ppm | -40°C ~ 85°C |
| MXO45-3I-4M0000 | CTS晶振 | MXO45 | 4MHz | 5V | ±50ppm | -40°C ~ 85°C |
| MXO45-3I-5M0000 | CTS晶振 | MXO45 | 5MHz | 5V | ±50ppm | -40°C ~ 85°C |
| MXO45-3I-7M3728 | CTS晶振 | MXO45 | 7.3728MHz | 5V | ±50ppm | -40°C ~ 85°C |
| MXO45-3I-8M0000 | CTS晶振 | MXO45 | 8MHz | 5V | ±50ppm | -40°C ~ 85°C |
| MXO45-2C-1M18784 | CTS晶振 | MXO45 | 1.18784MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2I-2M097152 | CTS晶振 | MXO45 | 2.097152MHz | 5V | ±100ppm | -40°C ~ 85°C |
| MXO45-3C-28M63636 | CTS晶振 | MXO45 | 28.63636MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-35M468952 | CTS晶振 | MXO45 | 35.468952MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-5M5924 | CTS晶振 | MXO45 | 5.5924MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-2C-66M66666 | CTS晶振 | MXO45 | 66.66666MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-80M0000 | CTS晶振 | MXO45 | 80MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-64M0000 | CTS晶振 | MXO45 | 64MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-64M0000 | CTS晶振 | MXO45 | 64MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-66M6666 | CTS晶振 | MXO45 | 66.6666MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-80M0000 | CTS晶振 | MXO45 | 80MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-3C-64M0000 | CTS晶振 | MXO45 | 64MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-66M6666 | CTS晶振 | MXO45 | 66.6666MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-66M66666 | CTS晶振 | MXO45 | 66.66666MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-80M0000 | CTS晶振 | MXO45 | 80MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-80M0000 | CTS晶振 | MXO45 | 80MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-64M0000 | CTS晶振 | MXO45 | 64MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-2C-66M66666 | CTS晶振 | MXO45 | 66.66666MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-80M0000 | CTS晶振 | MXO45 | 80MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45-2C-64M0000 | CTS晶振 | MXO45 | 64MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-64M0000 | CTS晶振 | MXO45 | 64MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-66M6666 | CTS晶振 | MXO45 | 66.6666MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-2C-80M0000 | CTS晶振 | MXO45 | 80MHz | 5V | ±100ppm | -20°C ~ 70°C |
| MXO45T-3C-64M0000 | CTS晶振 | MXO45 | 64MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-66M6666 | CTS晶振 | MXO45 | 66.6666MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-66M66666 | CTS晶振 | MXO45 | 66.66666MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-80M0000 | CTS晶振 | MXO45 | 80MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45T-3C-80M0000 | CTS晶振 | MXO45 | 80MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-3C-64M0000 | CTS晶振 | MXO45 | 64MHz | 5V | ±50ppm | -20°C ~ 70°C |
| MXO45-5I-37M0560 | CTS晶振 | MXO45 | 37.056MHz | 5V | ±25ppm | -40°C ~ 85°C |
| MXO45-6C-40M0000 | CTS晶振 | MXO45 | 40MHz | 5V | ±20ppm | -20°C ~ 70°C |
| MXO45-3I-2M4576 | CTS晶振 | MXO45 | 2.4576MHz | 5V | ±50ppm | -40°C ~ 85°C |
.jpg)
系我們.jpg)
深 圳 市 金 洛 電 子 有 限 公 司代理:EPSON,KDS,SEIKO,CITIZEN
電話:0755-27837162
手機:13510569637
郵箱:jinluodz@163.com
Q Q:657116624
地址:深圳市寶安41區甲岸路19號
網址:http://m.zghybn.com
業務經理
客服經理
