- 規格型號：14593580
- 頻率：156.25MHz
- 尺寸：5.0×3.2×1.4mm

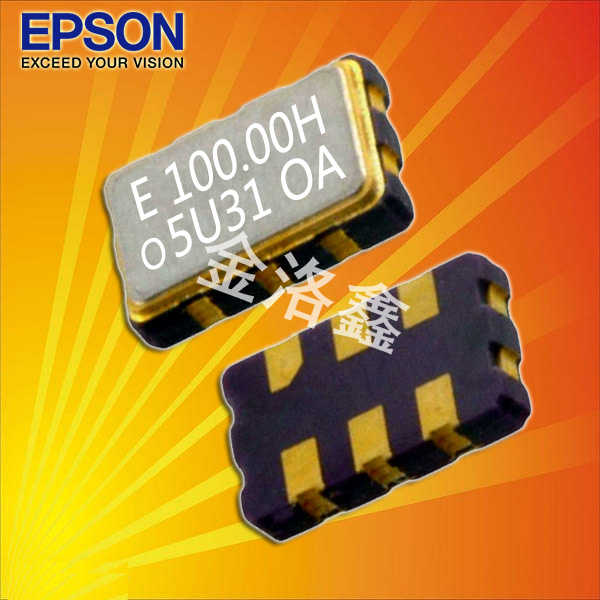

- 產品描述：日本愛普生晶振,進口晶體振蕩器,LV-PECL差分晶振,EG-2102CB有源晶振,X1M0002010004晶振,頻率156.25MHz,電壓3.3V,工作溫度0~70°C,尺寸5032mm,六腳石英SMD晶振,智能手機晶振,藍牙模塊晶振,可視智能家居晶振,網絡終端晶...
X1M0002010004|156.25MHz|LV-PECL差分晶振|5032mm
品說明.jpg)
.jpg)
X1M0002010004|156.25MHz|LV-PECL差分晶振|5032mm,日本愛普生晶振,進口晶體振蕩器,LV-PECL差分晶振,EG-2102CB有源晶振,X1M0002010004晶振,頻率156.25MHz,電壓3.3V,工作溫度0~70°C,頻率容差50ppm,尺寸5032mm,六腳石英SMD晶振,智能手機晶振,藍牙模塊晶振,可視智能家居晶振,網絡終端晶振,智能家用電器晶振.
品規格參數圖.jpg)
X1M0002010004|156.25MHz|LV-PECL差分晶振|5032mm,參數圖
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 156.25MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | Vcc | 3.3V±0.3V | |
| 儲存溫度 | T_stg | -40℃~+125℃ | 裸存 |
| 工作溫度 | T_use | 0℃~ +70℃ | |
| 頻率公差（標準） | f_tol | ±50 ppm | +25℃,超出標準的規格說明請聯系我們以便獲取相關信息 |
| 電流消耗 | f_tem | 60mA Max | OE=Vcc,L ECL=50Ω or LVDS=100Ω |
| 禁用電流 | I_dis | 2mA Max | OE=GND |
| 對稱性（占空比） | SYM | 45%~55% | 在輸出交叉點 |
| 輸出電壓（LV-PECL) | VOH | 2.35V Typ | DC charactenistics |
| VOL | 1.60V Typ | ||
| 輸出負載條件 | L _ECL | 50Ω | Terminated to GND |
| 輸入電壓 | VIH | 70%Vcc Min | OE terminal |
| VIL | 30%Vcc Max | ||
| 上升下降時間 | tr/tf | 400ps Max | Between 20% and 80% of (VOH+VOL) |
| 起始時間 | t str | 10ms Max | Time at minimum supply voltage to be 0 |
| 相位抖動 | tpj | 0.22ps Max | 150MHz≤fo<200MHz |
| 老化 | f_aging | ±10ppm/year | +25℃,第一年，Vcc=2.5V,3.3V |
品尺寸圖.jpg)
X1M0002010004|156.25MHz|LV-PECL差分晶振|5032mm 尺寸圖
| 編碼 | 型號 | 頻率 | 尺寸 | 輸出方式 | 電源電壓 | 工作溫度 |
| X1M0000910001 | EG-2102CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL | 3.000 to 3.600 V | 0 to 70 °C |
| X1M0000910002 | EG-2102CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL | 3.000 to 3.600 V | 0 to 70 °C |
| X1M0000910003 | EG-2102CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL | 3.000 to 3.600 V | 0 to 70 °C |
| X1M0000910004 | EG-2102CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL | 3.000 to 3.600 V | -5 to 85 °C |
| X1M0000910005 | EG-2102CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL | 3.000 to 3.600 V | -20 to 70 °C |
| X1M0000910006 | EG-2102CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL | 3.000 to 3.600 V | 0 to 70 °C |
| X1M0000910007 | EG-2102CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL | 3.000 to 3.600 V | -5 to 85 °C |
| X1M0000910008 | EG-2102CA | 156.250000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL | 3.000 to 3.600 V | 0 to 70 °C |
| X1M0000910009 | EG-2102CA | 312.500000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL | 3.000 to 3.600 V | 0 to 70 °C |
| X1M0000910010 | EG-2102CA | 322.265625 MHz | 7.00 x 5.00 x 1.20 mm | HCSL | 3.000 to 3.600 V | -5 to 85 °C |
| X1M0001010002 | EG-2121CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | HCSL | 2.375 to 2.625 V | 0 to 70 °C |
| X1M0002010001 | EG-2102CB | 133.330000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.970 to 3.630 V | 0 to 70 °C |
| X1M0002010002 | EG-2102CB | 150.000000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.970 to 3.630 V | 0 to 70 °C |
| X1M0002010003 | EG-2102CB | 133.000000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.970 to 3.630 V | 0 to 70 °C |
| X1M0002010004 | EG-2102CB | 156.250000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.970 to 3.630 V | 0 to 70 °C |
| X1M0002010005 | EG-2102CB | 212.500000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.970 to 3.630 V | -20 to 70 °C |
| X1M0002010006 | EG-2102CB | 644.531300 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.970 to 3.630 V | 0 to 70 °C |
| X1M0002010007 | EG-2102CB | 625.000000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.970 to 3.630 V | -5 to 85 °C |
| X1M0002010008 | EG-2102CB | 100.000000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.970 to 3.630 V | -5 to 85 °C |
| X1M0002010009 | EG-2102CB | 150.000000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.970 to 3.630 V | 0 to 70 °C |
| X1M0002010010 | EG-2102CB | 106.250000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.970 to 3.630 V | -5 to 85 °C |
| X1M0002110001 | EG-2121CB | 156.250000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
| X1M0002110002 | EG-2121CB | 212.500000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.375 to 2.625 V | -20 to 70 °C |
| X1M0002110003 | EG-2121CB | 156.250000 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.375 to 2.625 V | -20 to 70 °C |
| X1M0002110004 | EG-2121CB | 322.265625 MHz | 5.00 x 3.20 x 1.40 mm | LV-PECL | 2.375 to 2.625 V | -20 to 70 °C |
| X1M0002210002 | EG-2102CB | 200.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V | 0 to 70 °C |
| X1M0002210003 | EG-2102CB | 125.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V | 0 to 70 °C |
| X1M0002210004 | EG-2102CB | 266.500000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V | -20 to 70 °C |
| X1M0002210005 | EG-2102CB | 156.250000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V | -20 to 70 °C |
| X1M0002210006 | EG-2102CB | 148.500000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V | -20 to 70 °C |
| X1M0002210007 | EG-2102CB | 100.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V | -5 to 85 °C |
| X1M0002210008 | EG-2102CB | 148.351648 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V | 0 to 70 °C |
| X1M0002210009 | EG-2102CB | 148.350000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V | -20 to 70 °C |
| X1M0002210010 | EG-2102CB | 200.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V | -20 to 70 °C |
| X1M0002210011 | EG-2102CB | 156.250000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.970 to 3.630 V | 0 to 70 °C |
| X1M0002310002 | EG-2121CB | 125.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M0002310003 | EG-2121CB | 200.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M0002310004 | EG-2121CB | 156.250000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M0002310005 | EG-2121CB | 402.832000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M0002310006 | EG-2121CB | 200.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V | -20 to 70 °C |
| X1M0002310007 | EG-2121CB | 133.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M0002310010 | EG-2121CB | 500.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M0002310011 | EG-2121CB | 402.832031 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M0002310013 | EG-2121CB | 100.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V | -5 to 85 °C |
| X1M0002310014 | EG-2121CB | 441.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M0002310015 | EG-2121CB | 625.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V | -5 to 85 °C |
| X1M0002310016 | EG-2121CB | 156.250000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V | -5 to 85 °C |
| X1M0002310017 | EG-2121CB | 644.531250 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M0002310018 | EG-2121CB | 322.265625 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M0002310019 | EG-2121CB | 233.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M0002310020 | EG-2121CB | 200.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M0002310021 | EG-2121CB | 644.531250 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
