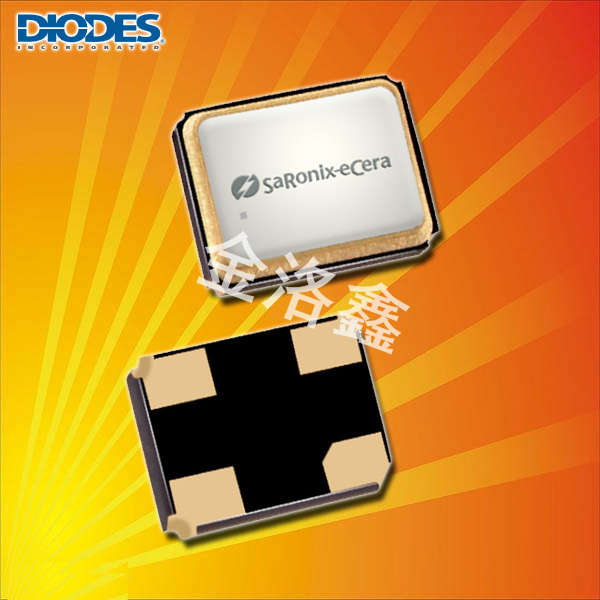

FW1920009Q-2016mm-19.2MHz-石英SMD晶振,臺灣百利通亞陶晶振,FW1920009Q晶振,2016mm晶振,頻率19.2MHz,負載10pf,工作溫度-40~125°C,石英SMD晶振,超小型晶振,晶體諧振器,耐高溫晶振,無鉛環保晶振,手持電腦晶振,筆記本電腦晶振,超寬頻晶振，無線個域網晶振,全球定位系統晶振,硬盤晶振.
FW1920009Q-2016mm-19.2MHz-石英SMD晶振 特點
•堅固的at切割晶體結構
•微型2.0 x 1.6mm陶瓷包裝,非常緊湊的SMD封裝
•可在磁帶和卷軸;8毫米磁帶,每卷3000支
•FW系列接縫密封裝置包括一個超小型at切割晶體諧振器,安裝在標準的2.0 x 1.6mm陶瓷
封裝,這些緊湊的晶體是理想的表面安裝在人口密集或小尺寸的PCB應用
•無鉛,符合RoHS/綠色標準

FW1920009Q-2016mm-19.2MHz-石英SMD晶振,參數圖

FW1920009Q-2016mm-19.2MHz-石英SMD晶振 尺寸圖

制造商零件編號	制造商	系列	頻率	頻率穩定性	頻率容差	負載電容
FW520WFMT1	Diodes 晶振	FW	52 MHz	±17ppm	±7ppm	12pF
FW2500025Z	Diodes 晶振	FW	25 MHz	±30ppm	±30ppm	20pF
FW2400063Q	Diodes 晶振	FW	24 MHz	±50ppm	±15ppm	18pF
FW4000044Q	Diodes 晶振	FW	40 MHz	±50ppm	±10ppm	8pF
FW2500039Q	Diodes 晶振	FW	25 MHz	±30ppm	±30ppm	18pF
FW4000025Q	Diodes 晶振	FW	40 MHz	±50ppm	±10ppm	10pF
FW1600010	Diodes 晶振	FW	16 MHz	±20ppm	±10ppm	8pF
FW4000015Q	Diodes 晶振	FW	40 MHz	±15ppm	±10ppm	8pF
FW400WFMT1	Diodes 晶振	FW	40 MHz	±17ppm	±7ppm	12pF
FW384WFIN1	Diodes 晶振	FW	38.4 MHz	±12ppm	±10ppm	7pF
FW260WFMR1	Diodes 晶振	FW	26 MHz	±10ppm	±10ppm	9pF
FW374WFBR2	Diodes 晶振	FW	37.4 MHz	±10ppm	±10ppm	16pF
FW2700019Z	Diodes 晶振	FW	27 MHz	±30ppm	±30ppm	20pF
FW4000001	Diodes 晶振	FW	40 MHz	±15ppm	±10ppm	18pF
FW4800010Z	Diodes 晶振	FW	48 MHz	±20ppm	±10ppm	10pF
FW2600055Q	Diodes 晶振	FW	26 MHz	±30ppm	±10ppm	10pF
FW1920009Q	Diodes 晶振	FW	19.2 MHz	±50ppm	±30ppm	10pF
FW1600029Q	Diodes 晶振	FW	16 MHz	±60ppm	±10ppm	8pF
FW2000016Q	Diodes 晶振	FW	20 MHz	±50ppm	±15ppm	10pF
FW6000006Q	Diodes 晶振	FW	60 MHz	±20ppm	±20ppm	8pF
FW400WFQA1	Diodes 晶振	FW	40 MHz	±10ppm	±10ppm	7pF
FW2400001	Diodes 晶振	FW	24 MHz	±50ppm	±50ppm	20pF
FW3840001	Diodes 晶振	FW	38.4 MHz	±10ppm	±10ppm	9pF
FW374WFBR1	Diodes 晶振	FW	37.4 MHz	±10ppm	±10ppm	12pF
FW3740001Z	Diodes 晶振	FW	37.4 MHz	±10ppm	±10ppm	18pF
FW400WFMR1	Diodes 晶振	FW	40 MHz	±10ppm	±10ppm	10pF
FW2500022Q	Diodes 晶振	FW	25 MHz	±25ppm	±15ppm	20pF
FW5000008Q	Diodes 晶振	FW	50 MHz	±15ppm	±10ppm	10pF
FW374WFMR1	Diodes 晶振	FW	37.4 MHz	±10ppm	±10ppm	8pF
FW260WFMT1	Diodes 晶振	FW	26 MHz	±17ppm	±7ppm	12pF
FW2000008	Diodes 晶振	FW	20 MHz	±10ppm	±10ppm	12pF
FW1600008	Diodes 晶振	FW	16 MHz	±20ppm	±10ppm	12pF
FW2500071	Diodes 晶振	FW	25 MHz	±30ppm	±30ppm	16pF
FW2500072	Diodes 晶振	FW	25 MHz	±50ppm	±15ppm	10pF
FW2600008	Diodes 晶振	FW	26 MHz	±10ppm	±10ppm	8pF
FW2700008	Diodes 晶振	FW	27 MHz	±20ppm	±10ppm	15pF
FW2710004	Diodes 晶振	FW	27.12 MHz	±20ppm	±15ppm	8pF
FW3000023	Diodes 晶振	FW	30 MHz	±40ppm	±30ppm	6pF
FW3200004	Diodes 晶振	FW	32 MHz	±10ppm	±10ppm	8pF
FW3200022	Diodes 晶振	FW	32 MHz	±10ppm	±10ppm	8pF
FW3200033	Diodes 晶振	FW	32 MHz	±15ppm	±15ppm	8pF
FW3840015	Diodes 晶振	FW	38.4 MHz	±15ppm	±10ppm	7pF
FW4090001	Diodes 晶振	FW	40.96 MHz	±50ppm	±10ppm	6pF
FW2500051	Diodes 晶振	FW	25 MHz	±20ppm	±20ppm	12pF
FW3740009	Diodes 晶振	FW	37.4 MHz	±15ppm	±10ppm	11pF
FW1920001	Diodes 晶振	FW	19.2 MHz	±20ppm	±10ppm	8pF
FW2600018	Diodes 晶振	FW	26 MHz	±10ppm	±10ppm	9pF
FW3000010	Diodes 晶振	FW	30 MHz	±30ppm	±30ppm	10pF
FW1600001	Diodes 晶振	FW	16 MHz	±30ppm	±30ppm	8pF
FW1600006	Diodes 晶振	FW	16 MHz	±50ppm	±50ppm	18pF
FW1600009	Diodes 晶振	FW	16 MHz	±10ppm	±10ppm	9pF
FW1600015	Diodes 晶振	FW	16 MHz	±20ppm	±10ppm	8pF
FW2000011	Diodes 晶振	FW	20 MHz	±15ppm	±10ppm	10pF
FW2000012	Diodes 晶振	FW	20 MHz	±20ppm	±10ppm	12pF
FW2400007	Diodes 晶振	FW	24 MHz	±30ppm	±30ppm	15pF
FW2400011	Diodes 晶振	FW	24 MHz	±10ppm	±10ppm	8pF
FW2400014	Diodes 晶振	FW	24 MHz	±50ppm	±30ppm	20pF
FW2400015	Diodes 晶振	FW	24 MHz	±15ppm	±15ppm	8pF
FW2400016	Diodes 晶振	FW	24 MHz	±30ppm	±30ppm	18pF
FW2400022	Diodes 晶振	FW	24 MHz	±40ppm	±30ppm	6pF
FW2400023	Diodes 晶振	FW	24 MHz	±15ppm	±15ppm	10pF
FW2400030	Diodes 晶振	FW	24 MHz	±50ppm	±50ppm	8pF
FW2400031	Diodes 晶振	FW	24 MHz	±10ppm	±10ppm	12pF
FW2400033	Diodes 晶振	FW	24 MHz	±15ppm	±20ppm	7pF
FW2400039	Diodes 晶振	FW	24 MHz	±10ppm	±10ppm	15pF
FW2450002	Diodes 晶振	FW	24.576 MHz	±30ppm	±30ppm	12pF
FW2500001	Diodes 晶振	FW	25 MHz	±30ppm	±30ppm	18pF
FW2500003	Diodes 晶振	FW	25 MHz	±15ppm	±15ppm	12pF
FW2500012	Diodes 晶振	FW	25 MHz	±20ppm	±20ppm	18pF
FW2500016	Diodes 晶振	FW	25 MHz	±40ppm	±30ppm	6pF
FW2500018	Diodes 晶振	FW	25 MHz	±30ppm	±30ppm	10pF
FW2500020	Diodes 晶振	FW	25 MHz	±30ppm	±30ppm	18pF
FW2500021	Diodes 晶振	FW	25 MHz	±30ppm	±30ppm	20pF
FW2500026	Diodes 晶振	FW	25 MHz	±30ppm	±30ppm	6pF
FW2500027	Diodes 晶振	FW	25 MHz	±30ppm	±30ppm	18pF
FW2500034Z	Diodes 晶振	FW	25 MHz	±10ppm	±10ppm	10pF
FW2500037Z	Diodes 晶振	FW	25 MHz	±30ppm	±30ppm	20pF
FW2500042Z	Diodes 晶振	FW	25 MHz	±30ppm	±30ppm	20pF
FW2600003	Diodes 晶振	FW	26 MHz	±10ppm	±10ppm	10pF
FW2600004	Diodes 晶振	FW	26 MHz	±15ppm	±10ppm	8pF
FW2600014	Diodes 晶振	FW	26 MHz	±10ppm	±10ppm	9pF
