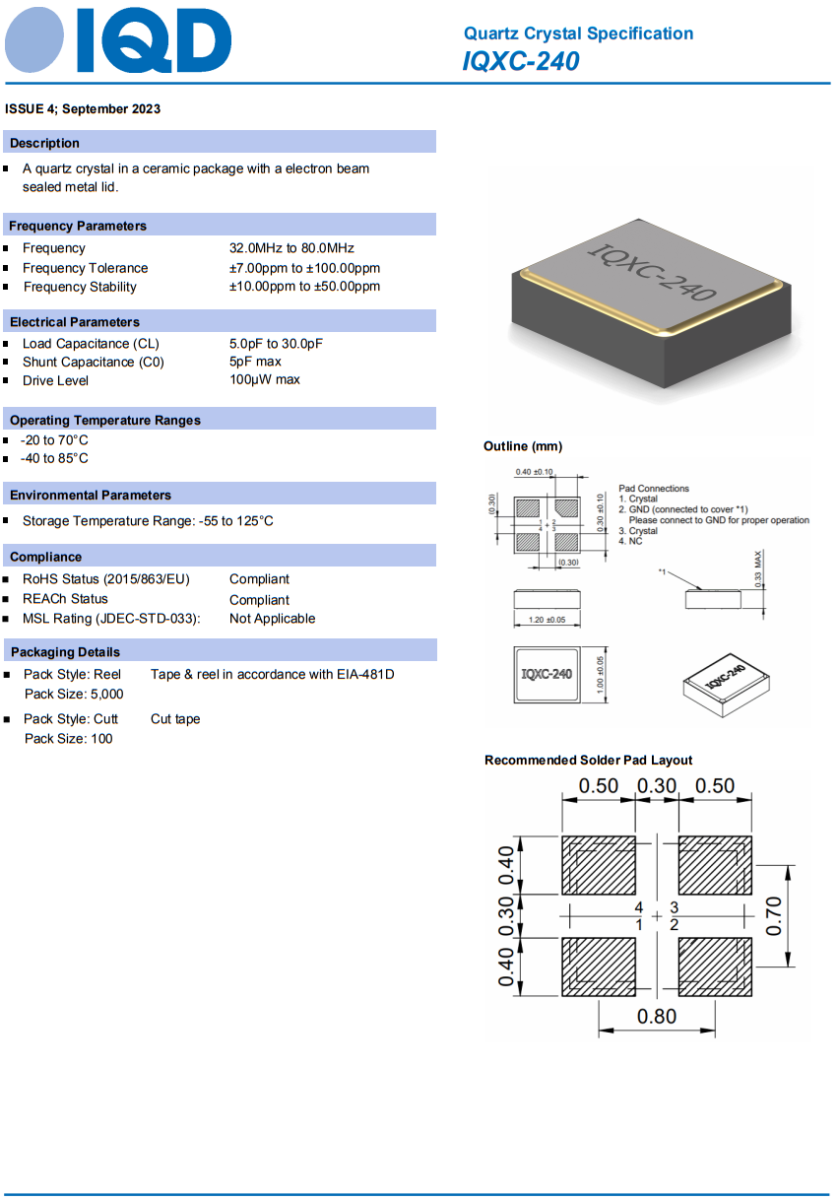

IQD公司提供世界上最小的石英晶體之一IQXC-240
來源：http://m.zghybn.com 作者：金洛鑫電子 2023年12月05
IQD Frequency Products offers one of the world’s smallest quartz crystals, the IQXC-240, which measures just 1.2 x 1.0mm with a height of only 0.33mm. The IQXC-240 is available in frequencies between 36MHz and 80MHz and is ideal for applications where space is at a premium such as IoT, VGA, USB and Wi-Fi.
Frequency stabilities can be specified as low as ±10ppm over the commercial temperature range of -20 to 70°C and ±15ppm over the industrial temperature range of -40 to 85°C. The frequency tolerance can be specified down to ±7ppm. In line with the requirements of the latest generation of microprocessors, the load capacitance can be as low as 5pF.
Housed in a 4-pad ceramic hermetically sealed package with an electron beam sealed metal lid, which helps to minimise the EMI radiation. The product is designed to be able to withstand shock levels of up to 1000G in accordance with IEC 60068-2-27. The IQXC-240 is available on tape and reel in accordance with EIA-481D.
Frequency stabilities can be specified as low as ±10ppm over the commercial temperature range of -20 to 70°C and ±15ppm over the industrial temperature range of -40 to 85°C. The frequency tolerance can be specified down to ±7ppm. In line with the requirements of the latest generation of microprocessors, the load capacitance can be as low as 5pF.
Housed in a 4-pad ceramic hermetically sealed package with an electron beam sealed metal lid, which helps to minimise the EMI radiation. The product is designed to be able to withstand shock levels of up to 1000G in accordance with IEC 60068-2-27. The IQXC-240 is available on tape and reel in accordance with EIA-481D.
IQD晶振公司提供世界上最小的石英晶體之一IQXC-240，其尺寸僅為1.2 x 1.0mm，高度僅為0.33mm。IQXC-240的頻率范圍在36MHz和80MHz之間，非常適合空間有限的應用，如物聯網、VGA、USB和Wi-Fi。
頻率穩定性可指定低至±10ppm在商業溫度范圍-20至70°C和±15ppm在工業溫度范圍-40至85°C。頻率公差可指定至±7ppm。符合最新一代微處理器的要求，負載電容可低至5pF。
封裝在一個4塊陶瓷密封封裝與電子束密封金屬蓋，這有助于減少電磁干擾輻射。根據IEC 60068-2-27，該產品設計能夠承受高達1000G的沖擊等級。IQXC-240可在磁帶和卷軸按照EIA-481D。
